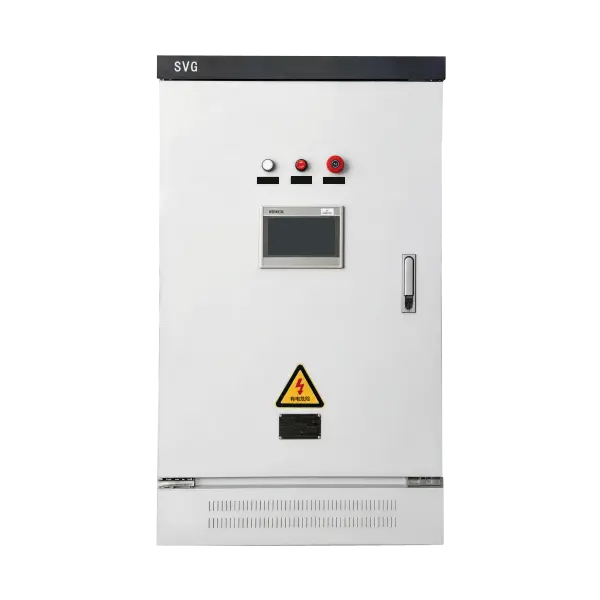

Static Var Generator
The Best of Performance
In industrial production, renewable energy integration and commercial power systems, changing electrical loads can cause voltage fluctuations, a low power factor and poor power quality. These issues may increase energy costs, place additional stress on electrical equipment and affect the reliability of the overall system. ATF’s Static Var Generator (SVG) is designed to help address these challenges by providing dynamic reactive power compensation as demand changes. Using advanced power inverter and IGBT technology, it responds rapidly to variations in the electrical load, helping improve power factor and support more stable system operation. This makes it a valuable solution for facilities seeking to enhance power quality, support equipment performance and manage their electrical systems more efficiently.
Product Parameters Overview
Refer to the table below
Parameters Characteristics
-
Diesel Generator Set
- Capacity 30kVar - 300kVar
- Rated Voltage 380V / 660V
- Phase 3P3W / 3P4W
- Frequency 50Hz
- Filtering Capacity 95%
- Response Time <5 ms
- Harmonic Filtering 2nd - 7th
- Power Factor Control Above 0.99
- Protection Class IP20
- Cooling Method Forced-air Cooled
Key Advantages
Linear Compensation
Eliminates capacitor bank switching steps, enabling stable power factor control above 0.98.
Harmonic Management
It can filter 2nd to 7th harmonics simultaneously, protecting equipment from overheating.
Fast Response
Full response time of 5~20ms, solving reactive power issues for rapidly changing loads.
Bidirectional Compensation
Supports "reverse compensation" of inductive reactive power, correcting over-compensation conditions.
Hybrid Control
Equipped with capacitor control ports, enabling seamless connection with traditional capacitors.
Multi-machine Parallel
Supports parallel operation of multiple devices, with a single cabinet accommodating up to 4 modules.
