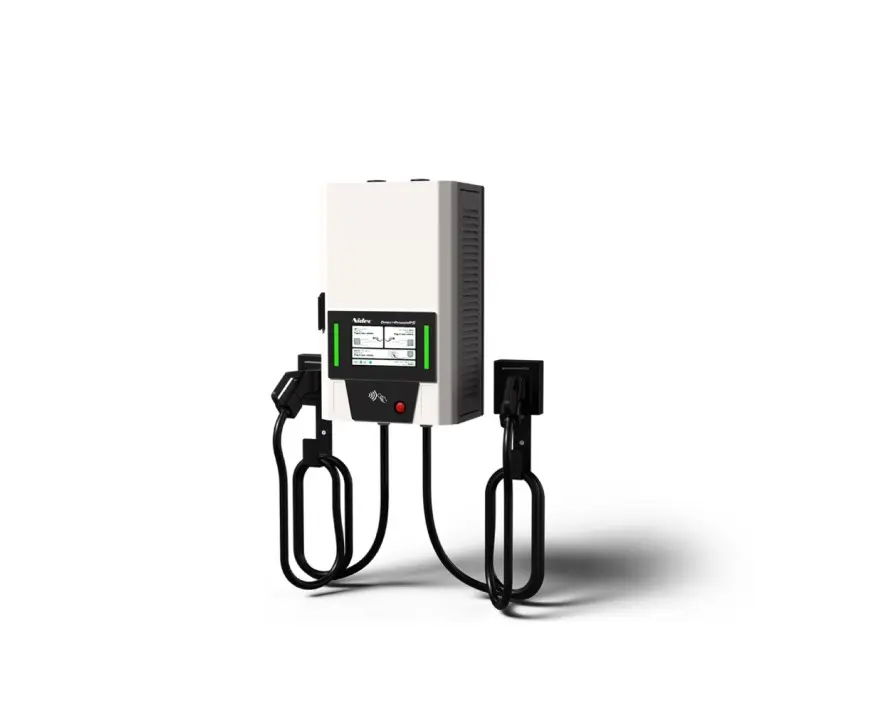

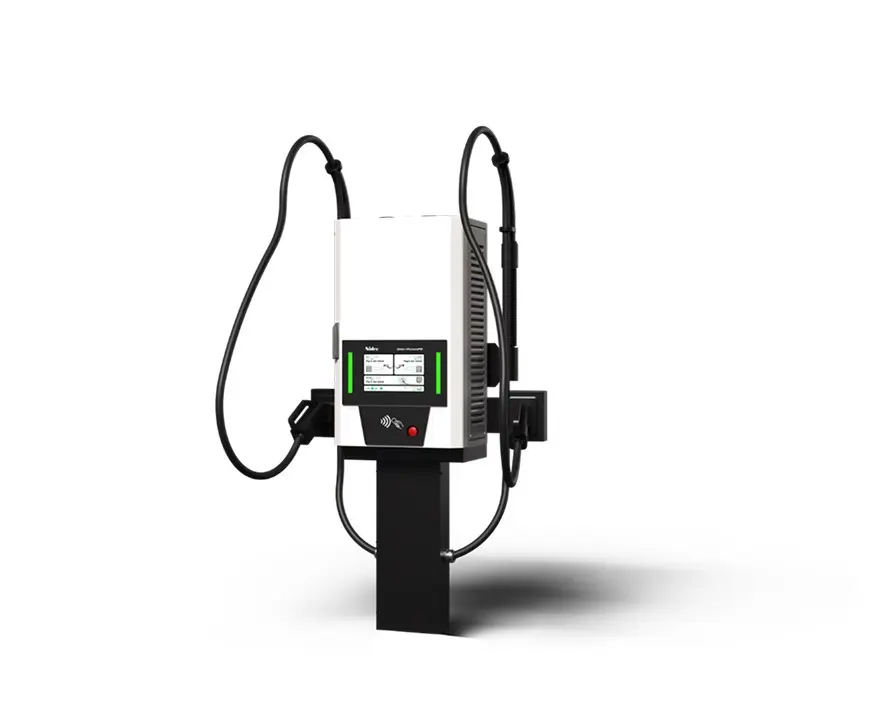

DC Fast Charging Up To 60kW

Achieve fast deployment, minimal investment in infrastructure, and extensive usage for multiple EVs in a single setup. Our solution ensures efficient and cost-effective outdoor installations, catering to businesses of all sizes and scales.​

Key Features:

Fast, Smart and Compact

• Simultaneously fuel up with Dual 30kW or Single 60kW CCS Outputs and supports AC charging in parallel

Fast, Smart and Compact

• Simultaneously fuel up with Dual 30kW or Single 60kW CCS Outputs and supports AC charging in parallel

Engineered Solutions

• Highly reliable cable management, tested in toughest handling and various application situations

Ease in Installation

• EU designed Pedestal and accessories, lasts for life-time with minimal installation costs

Dual Connectivity

• OCPP Backend and Nidec By Your Side connected same time to ensure smooth charging operations

Safe and Reliable

• Meticulously engineered using high-quality components and materials for top performance and reliability, the DC Wallbox is enhanced with multiple safety features and additional protection.

Modular Maintenance

• The modular and industrial design enables low maintenance, this Reducing the total cost of operations

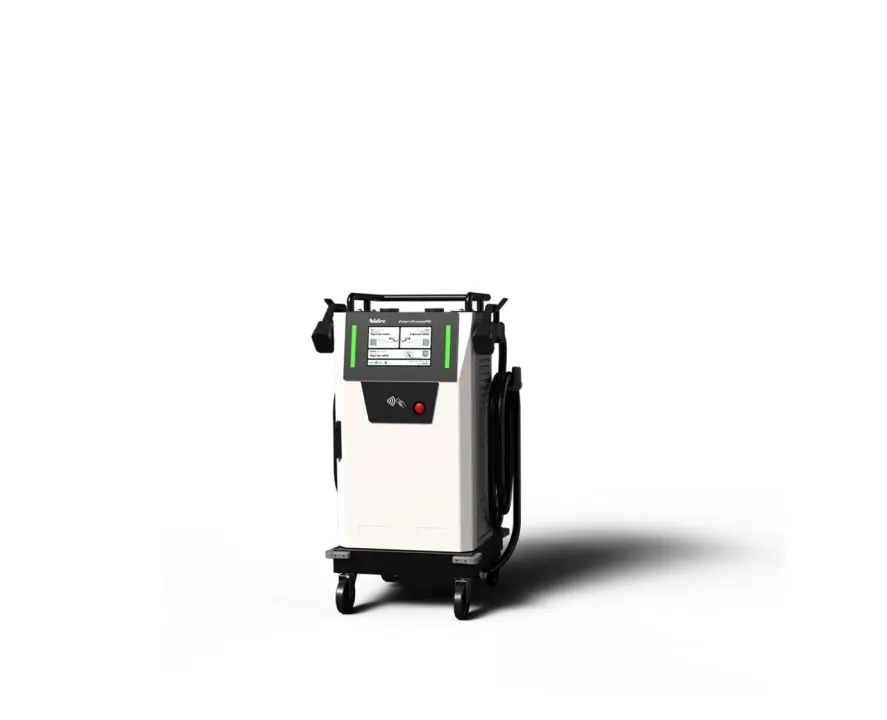

DC Fast Charging Up To 60kW

For commercial spaces and service centers where dedicated park-and-charge locations for EVs are not possible, our DC Wallbox offers an innovative solution. Designed on wheels for easy portability, it can move to every EV while maintaining the same efficiency as a stationary DC charger. This ensures flexible and efficient charging without compromising on performance.

Key Features:

Fast, Smart and Compact

• Simultaneously fuel up with Dual 30kW or Single 60kW CCS Outputs and supports AC charging in parallel

User-Friendly Interface

• 12" touch screen with well defined application and Multi-Language

Engineered Solutions

• Highly practical trolley arrangement and tested in unorganized service centers, preferred by fast customers

Easy Handling

• Experience easy maneuverability and effortless handling with our cutting-edge fast charger, all while maintaining top-notch safety standards.

No Installation

• Connect and quickcharge with grid power connected to an easy-to-find industrial socket of 63A or 125A

Dual Connectivity

• OCPP Backend and Nidec By Your Side connected same time to ensure smooth charging operations

Safe and Reliable

• Meticulously engineered using high-quality components and materials for top performance and reliability, the DC Wallbox is enhanced with multiple safety features and additional protection.

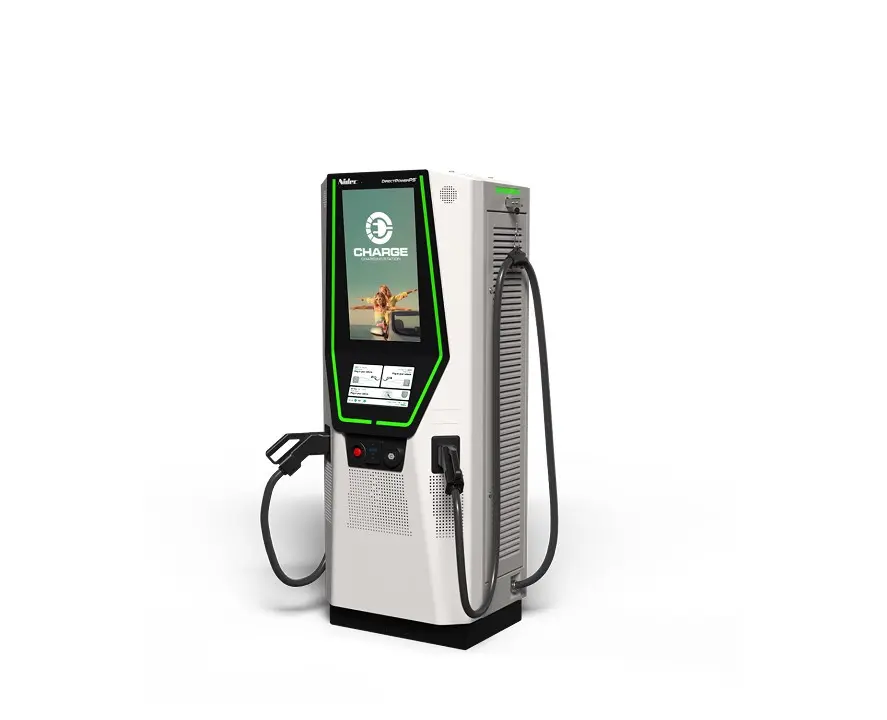

DC Fast Charging Up To 160kW

A comprehensive public charging infrastructure is essential for the growth of e-mobility. Nidec DC Tower Fast Chargers offer a reliable solution with distinguished Italian design, ergonomic user-experience, real-time information and updates, and compatibility with all EVs. Featuring MID certified and German calibrated meters for accurate billing, safe and secure transactions, and much more, our all-in-one chargers ensure a seamless and efficient charging experience, overcoming the variability in user experiences and technical requirements of EVs.

Key Features:

Consistent Charging Speeds

• Ensures reliable charging up to 160kW for various battery types, with dynamically assigned power sharing groups.

User-Centric Design

• Enhanced user experience with smart status lights for clear feedback.

Compact Design

• Smaller footprint with efficient cable handling and management for ease of use across diverse user groups.

Cable Management Arm

• Efficient cable management for easy handling of the charging cables.

Monitoring and Control

• Advanced monitoring and control through Nidec BYS and OCPP connectivity for efficient management.

Easy Installation and Maintenance

• Simplified installation processes and low-maintenance design ensure quick setup and hassle-free operation.

Universal Compatibility

• Wide output range compatible with all EVs, adhering to global interoperability standards.

Accurate Billing

• MID certified and calibrated meters ensure realistic and transparent transactions.

Safe Transactions

• Advanced security measures for payment and data protection.

Efficient Energy Management

• Optimizes energy usage to reduce costs and environmental impact, with dynamic load management across all stations on a site.

Cyber Security

• Robust cyber security measures to protect against data breaches and cyber attacks, ensuring safe and secure transactions and data protection.

High Durability

• Built to withstand harsh environmental conditions and heavy usage.

Customization

• Branding colors and logos to match your needs.

Technical Specifications

• Power Output: 120kW to 160kW
• Voltage Range: 150V to 1000V DC
• Current Rating: Up to 500A
• Dimensions: 2236 x 846 x 594mm
• Cable length of 5-7-10 meters
• Display: 32" ad display, 15.6" HD touch screen
• Connectivity: OCPP1.6j, 2.0.1, CCS2, CHAdeMO, AC Type 2
• Compliance: MID / LNE / Eichrecht, IEC 61851 DIN 70121, ISO15118

DC Fast Charging Up To 400kW

High power output and efficient energy management reduce operational costs and increase vehicle uptime. The faster charging capabilities lead to higher turnover rates, ensuring quicker returns on your investment.

Ultrafast charging has rapidly gained traction recently due to the increasing demand for fast cars, large trucks, and EVs that require quick refueling. Nidec DC Tower Ultra Fast Chargers, delivering 360 to 400kW, are perfectly suited for large battery EVs like buses, trucks, and construction vehicles.

Featuring modular design for quick upgrades, optimized dimensions for space efficiency, and efficient cable management, these chargers address the needs of large-scale operators. They offer faster returns on investment through high power output and efficient energy management, reducing operational costs and increasing vehicle uptime.

Supporting simultaneous charging, dynamic load management, and power sharing, these chargers ensure a seamless and efficient charging experience.

Key Features:

High Power Charging

• Delivering 360 to 400kW, ideal for large battery EVs like buses, trucks, and construction vehicles.

User-Centric Design

• Enhanced user experience with smart status lights for clear feedback.

User-Centric Design

• Enhanced user experience with smart status lights for clear feedback.

Faster Upgrades

• Modular design for quick and seamless upgrades.

Cable Management Arm

• Efficient cable management for easy handling of the charging cables.

Monitoring and Control

• Advanced monitoring and control through Nidec BYS and OCPP connectivity for efficient management.

Easy Installation and Maintenance

• Simplified installation processes and low-maintenance design ensure quick setup and hassle-free operation.

Accurate Billing

• MID certified and calibrated meters ensure realistic and transparent transactions.

Multiple Scenario Charging

• Supports simultaneous charging, dynamic load management, and power sharing.

Liquid-cooled System

• Available as option for higher rated current and efficient cooling during high power charging.

Cable Theft and Vandalism Prevention

• Equipped with security features to prevent cable theft and vandalism, ensuring the integrity and availability of the charging infrastructure.

Cyber Security

• Robust cyber security measures to protect against data breaches and cyber attacks, ensuring safe and secure transactions and data protection.

High Durability

• Built to withstand harsh environmental conditions and heavy usage.

Customization

• Customizable colors and logos to match your brand.

Technical Specifications

• Power Output: 360kW to 400kW
• Voltage Range: 150V to 1000V DC
• Current Rating: Up to 500A continuous with liquid-cooled cables
• Dimensions: 2236 x 846 x 764mm
• Cable length of 5-7-10 meters
• Display: 32" ad display, 15.6" HD touch screen
• Connectivity: OCPP1.6j, 2.0.1, CCS2, CHAdeMO, AC Type 2
• Compliance: MID / LNE / Eichrecht, IEC 61851,DIN 70121, ISO15118

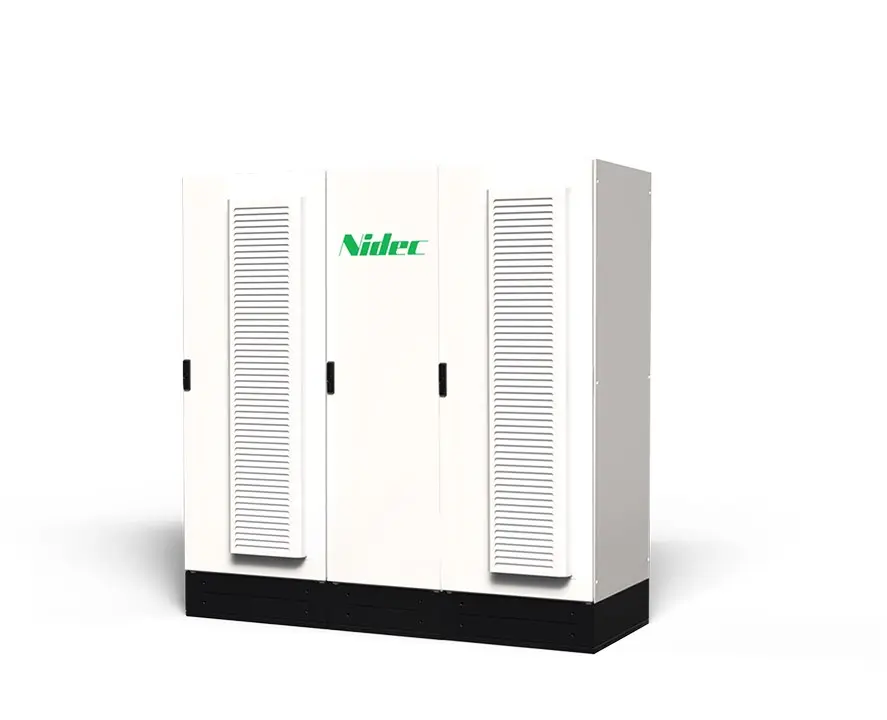

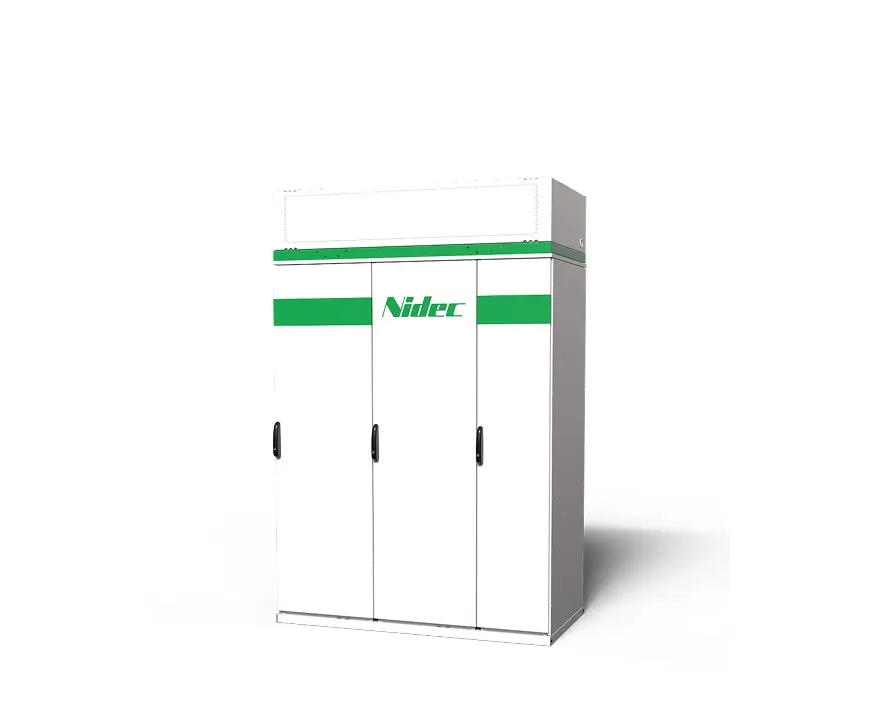

Up to 1.28MW

The DC Split is the solution for businesses seeking to future-proof their EV charging infrastructure. Designed for scalability and efficiency, this system empowers fleet operators, logistics hubs, and public charging networks to thrive in a rapidly electrifying world. Its Converter Unit is highly efficient and flexible, delivering up to 480kW or 640kW of power, scalable in 40kW increments. This solution offers unparalleled scalability, supporting up to 12 charging points and scaling in increments of 40kW or 80kW. Each connector delivers up to 480kW and 600A continuously, ensuring fast and efficient charging. For fuel stations, it offers a flexible, reliable, and easy-to-integrate system that seamlessly fits into existing infrastructure and integrates with payment systems, attracting and retaining EV drivers. Public and private fleets benefit from fast, scalable charging solutions that minimize downtime and reduce total cost of ownership, optimizing power consumption for fleet operations. Commercial activities can deploy a compact, customizable, and sustainable charging solution that enhances customer satisfaction, supporting various payment methods for a user-friendly experience.

Key Features:

Highest Power Availability

• 1,28MW Charging Capacity: More than 50 vehicles can be charged in 3 hours. Small Footprint: Compact design reducing installation requirements. Ready for MCS (Mega Charging Solution): Compatibility with the latest high-power charging standards.

Wide Range of Applications

• E-Fleets, Bus, Trucks & Passenger EVs: Supports various electric vehicles. Extended Applications: Ready for sea, ground support for air, and heavy transport charging infrastructure.

The Future of Charging Infrastructure

• High Capacity Charging: Utilize the 30-minute mandatory stopover with full power of 1280kW. High Power Charging Stations: Adoption of new standards including readiness for combination of MCS & CCS.

Cost Reduction

• Lowers initial investment and installation costs. With the intelligent Load Management we can guarantee an efficient energy use and reduced operational costs.

Modular and Scalable Design

• Modular Design: Configurations possible with combining multiple 1280kW units, supporting 1 to 12 DC charging points. Flexible Configurations: Scalable modules in 40kW increments.

Improved Installation and Maintenance

• Expert guided Installation: Reduces on-site operation time with Nidec supervision and training. Well Defined Maintenance Procedure: Planned maintenance to ensure maximum efficiency, uptime and delivery.

Charging Connectors

• Maximum Output Quantity: From 1 to 12 connectors. Continuous Charging: 600A per connector. Maximum Output: 480kW per connector. Liquid-Cooled Connectors: Enables simultaneous charging for two heavy-duty trucks.

Flexibility and Adaptability

• Versatile Configuration: Adaptable to various dispensers for different scenarios including bus depots, highway charging stations, and fleet operations. Organized Charge Planning: Efficient scheduling and prioritization of charging sessions.

Advanced Cooling and Efficiency

• Innovative Cooling System: Ensures optimal performance Temperature Sensors: Precise temperature management. 97% Conversion Efficiency: Advanced SiC semiconductors for optimal energy utilization.

Dual Connectivity

• OCPP Backend and Nidec By Your Side connected same time to ensure smooth charging operations

Technical Specifications

• Converter Unit: Configurations delivering up to 1280kW.
• Switch Matrix: Supports up to 12 charging points.
• DC Output: Up to 480kW per connector.
• Voltage Range: 150V to 1000V DC
• Current Rating: Up to 600A continuous with liquid-cooled cables
• Dimensions: 2200 x 2200 x 800mm
• Mechanical Design: Compact, corrosion-protected steel, customizable.
• Operating Conditions: Suitable for outdoor installation, IP55 protection, -20°C to +50°C.
• Standards: CE, UKCA, IEC standards.
• Energy Metering: MID / LNE / Eichrecht compliant.

Up to 2x600A

Our unique design offers a dual-purpose solution that not only charges vehicles efficiently but also serves as a powerful marketing platform. Equipped with an advertising screen, it enhances visibility and generates additional revenue.

Key Features:

Simultaneous Charging

• Capable of delivering 600A current through both connectors, ensuring rapid and efficient charging.

High Capacity and Easy Installation

• Our high-capacity DC cables are fed from power units, ensuring seamless installation and operation within a compact unit.

Integrated Marketing Platform

• Enhance visibility and brand presence with our integrated marketing platform, designed to engage customers effectively.

Cable Management Arm

• Efficient cable management for easy handling of the charging cables.

Advanced Cooling System

• Each connector is liquid-cooled to maximize efficiency and performance.

Extended Cable Lengths

• Super-cooled cables are available in extended lengths to accommodate various installation needs.

High Capacity and Easy Installation

• DC cables are fed from power units, ensuring maximum capacity and straightforward installation.

Safe and Secure

• Dispensers are built for safety with multi level protection from over currents, voltages and high usage.

Swift Configuration

• Dispensers are designed for ease of handling and quick configuration at the site.

Accurate Billing

• MID certified and calibrated meters ensure realistic and transparent transactions.

Monitoring and Control

• Advanced monitoring and control through Nidec BYS and OCPP connectivity for efficient management.

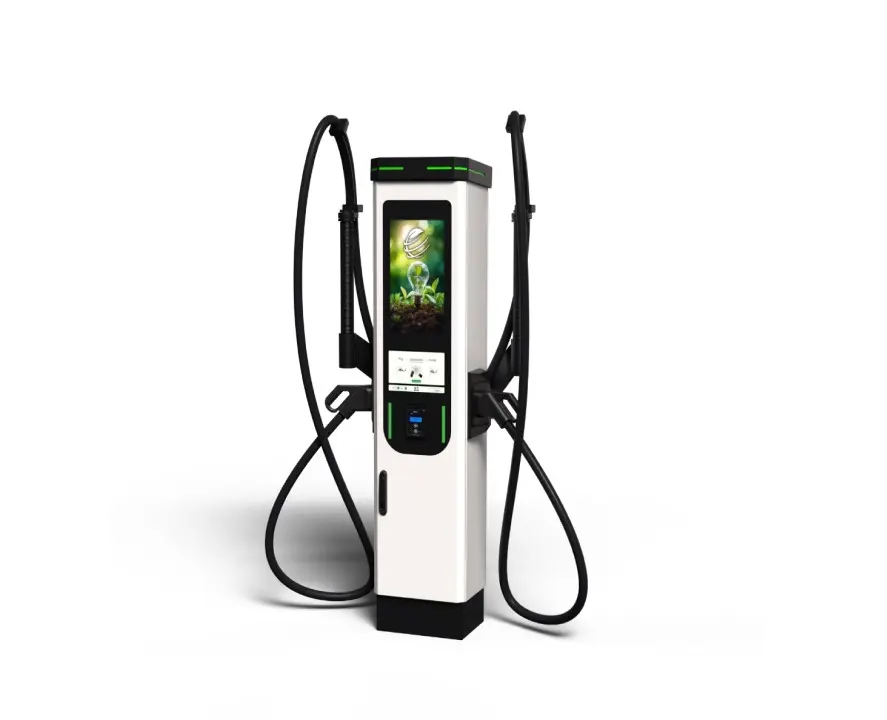

Up to 2x600A

Our distributed charging stations feature a compact design dispenser that ensures easy installation in tight areas while maintaining an aesthetically pleasing setup.

Key Features:

Simultaneous Charging

• Capable of delivering 600A current through both connectors, ensuring rapid and efficient charging.

High Capacity and Easy Installation

• Our high-capacity DC cables are fed from power units, ensuring seamless installation and operation within a compact unit.

Integrated Marketing Platform

• Enhance visibility and brand presence with our integrated marketing platform, designed to engage customers effectively.

Cable Management

• Ergonomically designed cable management systems provide easy reach and service to EVs.

Advanced Cooling System

• Each connector is liquid-cooled to maximize efficiency and performance.

Super Cooled Longer Cables

• Available in extended lengths, our cables ensure high efficiency and consistent performance.

Safety and Security

• Our dispensers are built with multi-level protection against over currents, over voltage, surges, and high usage.

Secure payment

• Options are tested with various payment terminals to ensure safe transactions.

User-Friendly User Interface

• Swift configuration and ease of handling at the site make our dispensers user-friendly and efficient.

Consistent Charging Performance

• Our charging stations deliver high efficiency and consistency with cable lengths of 5m and 10m, ensuring reliable service for all EVs.

Accurate Billing

• MID certified and calibrated meters ensure realistic and transparent transactions.

Monitoring and Control

• Advanced monitoring and control through Nidec BYS and OCPP connectivity for efficient management.

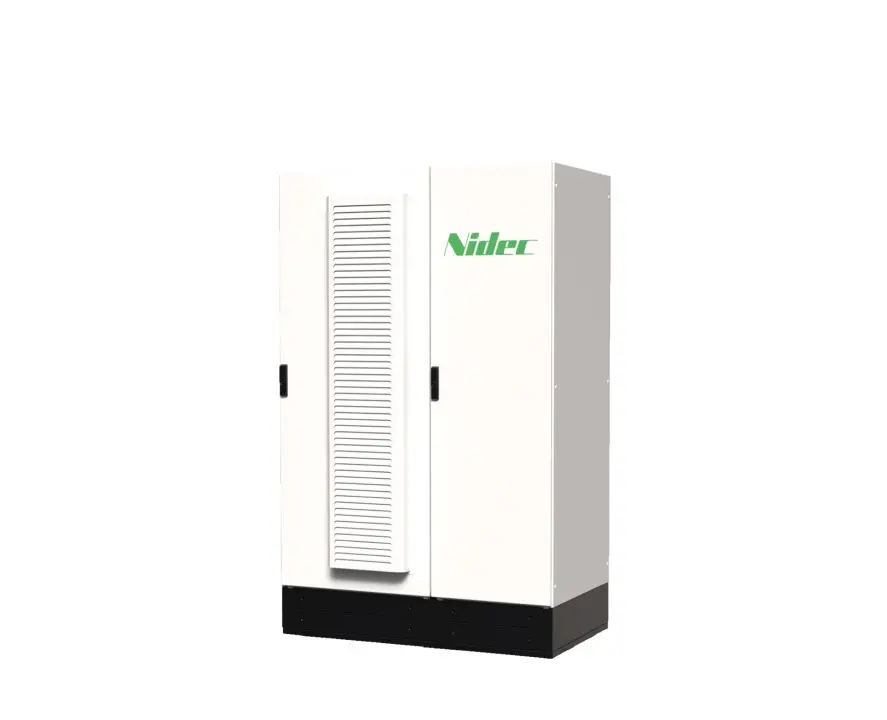

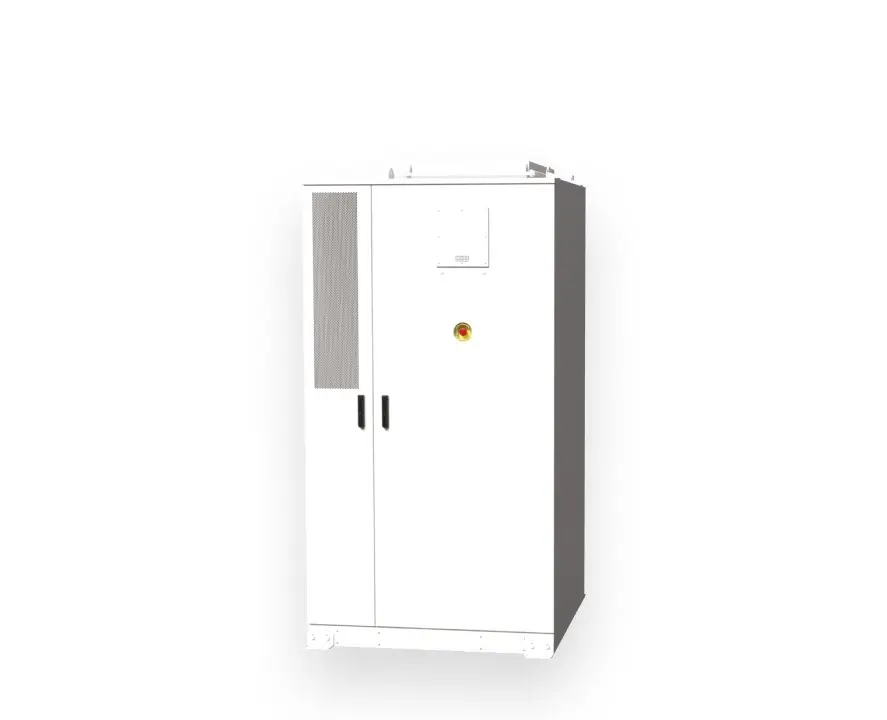

186 kWh / 279 kWh / 372 kWh

The battery unit in combination with the Multi Power unit offers a charging solution with high capacity options, advanced battery management, liquid cooling, high voltage capability, robust safety features collectively address the challenges in EV charging by providing reliable, efficient, and safe energy storage solutions, ensuring rapid charging, optimal performance, and high-end integration into various environments, thereby enhancing the overall charging infrastructure.

Key Features:

High Capacity Options

• Available in three variants and two rated capacities: 280Ah and 560Ah batteries.

Advanced Battery Management System

• Real-time monitoring and fault detection for optimal performance and safety.

Efficient Cooling System

• Liquid cooling maintains optimal operating temperatures, enhancing efficiency and lifespan.

Robust Safety Features

• Includes overcurrent, overvoltage, overtemperature, undervoltage protection, and fire suppression systems.

Durable Construction

• IP54-rated protection and corrosion-protected steel for reliability in various conditions.

Efficient Energy Management

• Highest discharge efficiency and supports SOC/SOH estimation.

Long Cycle Life

• Designed for optimum performance with lifecycle up to 6000 cycles or 2 MWh delivered, ensuring highest durability.

Comprehensive Monitoring

• Real-time data on voltage, current, temperature, SOC, SOH, and insulation resistance.

Flexible Communication

• Supports CAN, RS485, and Ethernet for seamless integration and remote monitoring.

Altitude Capability

• Suitable for installation at altitudes up to 4000 meters.

Compact Dimensions

• Measures 2300H x 1300W x 1300D, allowing for planned installation and integration.


Up to 2x600A

Our unique design offers a dual-purpose solution that not only charges vehicles efficiently but also serves as a powerful marketing platform. Equipped with an advertising screen, it enhances visibility and generates additional revenue.

Key Features:

Simultaneous Charging

• Capable of delivering 600A current through both connectors, ensuring rapid and efficient charging.

High Capacity and Easy Installation

• Our high-capacity DC cables are fed from power units, ensuring seamless installation and operation within a compact unit.

Integrated Marketing Platform

• Enhance visibility and brand presence with our integrated marketing platform, designed to engage customers effectively.

Cable Management Arm

• Efficient cable management for easy handling of the charging cables.

Advanced Cooling System

• Each connector is liquid-cooled to maximize efficiency and performance.

Extended Cable Lengths

• Super-cooled cables are available in extended lengths to accommodate various installation needs.

High Capacity and Easy Installation

• DC cables are fed from power units, ensuring maximum capacity and straightforward installation.

Safe and Secure

• Dispensers are built for safety with multi level protection from over currents, voltages and high usage.

Swift Configuration

• Dispensers are designed for ease of handling and quick configuration at the site.

Accurate Billing

• MID certified and calibrated meters ensure realistic and transparent transactions.

Monitoring and Control

• Advanced monitoring and control through Nidec BYS and OCPP connectivity for efficient management.


Up to 2x600A

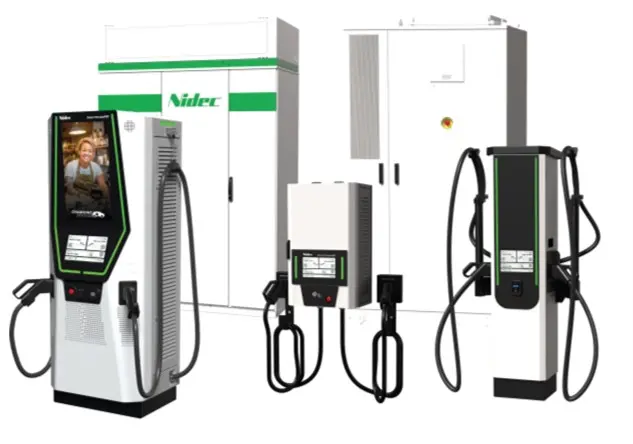

Our distributed charging stations feature a compact design dispenser that ensures easy installation in tight areas while maintaining an aesthetically pleasing setup.

Key Features:

Simultaneous Charging

• Capable of delivering 600A current through both connectors, ensuring rapid and efficient charging.

High Capacity and Easy Installation

• Our high-capacity DC cables are fed from power units, ensuring seamless installation and operation within a compact unit.

Integrated Marketing Platform

• Enhance visibility and brand presence with our integrated marketing platform, designed to engage customers effectively.

Cable Management

• Ergonomically designed cable management systems provide easy reach and service to EVs.

Advanced Cooling System

• Each connector is liquid-cooled to maximize efficiency and performance.

Super Cooled Longer Cables

• Available in extended lengths, our cables ensure high efficiency and consistent performance.

Safety and Security

• Our dispensers are built with multi-level protection against over currents, over voltage, surges, and high usage.

Secure payment

• Options are tested with various payment terminals to ensure safe transactions.

User-Friendly User Interface

• Swift configuration and ease of handling at the site make our dispensers user-friendly and efficient.

Consistent Charging Performance

• Our charging stations deliver high efficiency and consistency with cable lengths of 5m and 10m, ensuring reliable service for all EVs.

Accurate Billing

• MID certified and calibrated meters ensure realistic and transparent transactions.

Monitoring and Control

• Advanced monitoring and control through Nidec BYS and OCPP connectivity for efficient management.

11kW

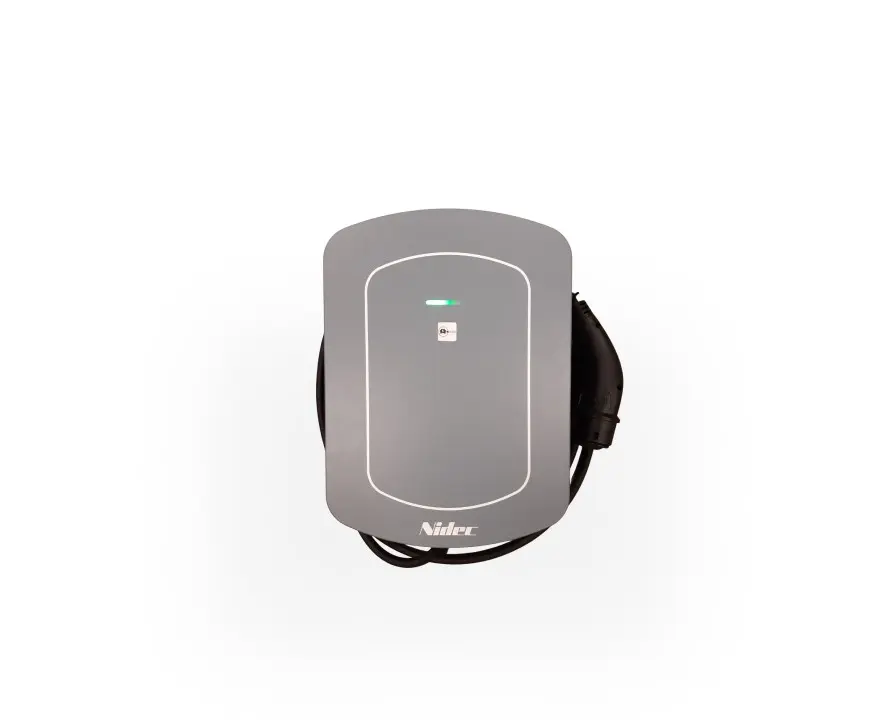

The Wallbox 11kW from the DirectPowerPS line is a powerful and efficient charging solution designed for electric vehicles. It offers fast charging capabilities, ensuring your vehicle is ready to go in no time. With its sleek design and user-friendly interface, it seamlessly integrates into any home or commercial setting, making it an ideal choice for EV owners.

Reliable & Safe

• Protection from Overcurrent, Short Ciruit, Overvoltage, Undervoltage & Residual currents

Smart & Dynamic

• Trought the Power and Energy Management you can regulate the output power of the chargers, monitor charging sessions & consumption energy, program and start from remote charging.

Connected

• Ethernet/LAN and WLAN
• OCPP 1.6 for third part backend connection Remote diagnostic through Nidec proprietary backedn
