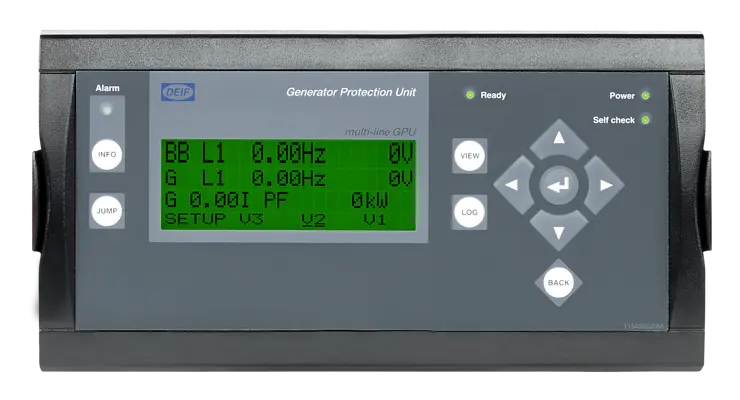

GPU-3
A Simplified Solution For Genset Builders.
Easy to operate and configure, DEIF’s Generator protection unit (GPU-3) is an ideal controller for PLC-based power management systems.
The GPU-3 offers comprehensive generator protection and synchronisation. Serial communication enables easy interfacing with PLCs, SCADA systems and more, and the unit features all necessary 3-phase measuring circuits and displays all values and alarms on a quality LCD screen.
Turning the GPU-3 into an engine control unit featuring start/stop and protection functionalities, the optional engine interface card also has a separate power supply and an independent microprocessor. In cases of GPU- 3 processor break-downs, the engine interface card will enter into backup mode and ensure uninterrupted engine supervision. In cases of shutdown alarms, the engine shuts down automatically, making it a reliable solution for control and supervision of gensets.
With free software download and upgrade at www.deif. com, it is possible to customise the application to suit your needs exactly: dedicate specific functions or logic conditions to different inputs and outputs and tune all sequences according to your requirements.
Product Overview
Refer to the table below
Key Features
- Modes for operation: Loadsharing
-
Fixed Frequency -
Fixed Power -
Frequency Droop - Applications: Marine- or Land-Based
-
PLC-controlled Systems -
Switchboard Control -
Analogue or CANbus Loadshare - Inputs: Standard 18
-
Up to 39 in Total - Outputs: Up to 28 in Total
- Analogue Inputs: 4-20mA
-
PT100 -
PT1000 -
RMI -
0-40Vdc
Key Features Continued..........
- Analogue Outputs: +/- 25mA
-
0-20mA -
4-20mA -
PWM (CAT) - Communication: Modbus RS-485/RS-232
-
Modbus TCP -
Profibus DP -
CANbus - Monitoring: Analogue Sensors
-
ECU Based Information - Measurements: 3 Phase Currrent
-
3 Phase Voltage (Generator / Shore and Busbar) -
Protection per IEEE Std. C37.2-1996(R2001) - Programming: From Display
-
From DEIF's USW-3 -
Basic Micro-Logic (M-Logic)
