Industrial Power Products: Energie
Pure Energy Solutions for Sub-Saharan Africa
Pumps
Lean Green Power Machines

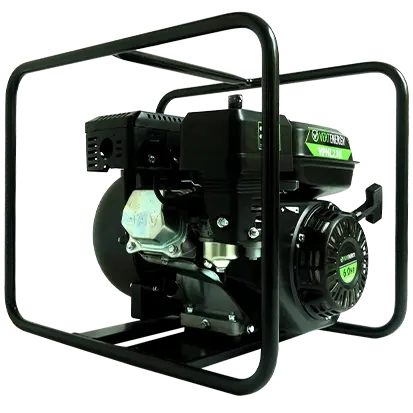

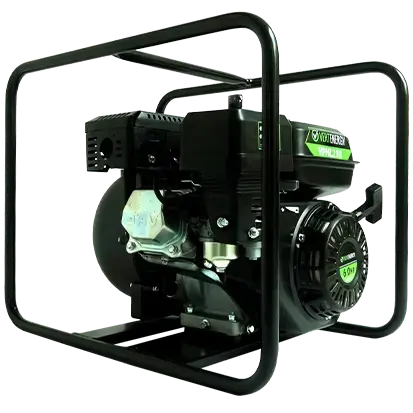

The Energie Water Pumps are light and portable as they are made with a strengthened Aluminum Alloy, fitted with a high quality carbon-ceramic mechanical seal.
Product Range Overview
Refer to the table below
Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 4.2kW - 8.0kW
- Cylinder Single
- Speed 3000 & 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Recoil or Electric
- Frequency Option 50Hz & 60Hz
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
Product Range
Overview
Pump Model
- Water Pump Model Engine Model
- WP 050 VPHL210-M
- WP 080 VPHL210-M
- WP 100 VPHL460-M
- WP 150 VPHL460-M
- WP 050 VPHLD220-M
- WP 080 VPHLD220-M
-
Values are at Max Rated Standby Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Max Output Rated
- Water Pump Model Flow L/min ..........kW
- WP_050P 550 ..........3.0
- WP_080P 1000 ..........3.8
- WP_100P 1600 ..........7.1
- WP_150P 1600 ..........8.5
- WP_050D 550 ..........3.0
- WP_080D 1000 ..........3.8
-
Values are at Rated Continuous Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Pump Model
- Chemical Fertilizer Pump Model Engine Model
- CFP 050 VPHL210-M
- CFP 080 VPHL210-M
-
Values are at Max Rated Standby Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Max Output Rated
- Chemical Fertilizer Pump Model Flow L/min ..........kW
- CFP_050 550 ..........4.1
- CFP_080 1000 ..........4.8
-
Values are at Rated Continuous Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Pump Model
- Chemical Stainless Steel Pump Model Engine Model
- CSSP 050 VPHL210-M
-
Values are at Max Rated Standby Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Max Output Rated
-
Chemical Stainless Steel Pump Model
Flow L/min ..........kW - VPPCSSP_050 1000 ..........3.5
-
Values are at Rated Continuous Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Pump Model
- Trash Pump Model Engine Model
- TP 080 VPHL420-M
- TP 100 VPHL460-M
- TP 080 VPHLD420-M
- TP 100 VPHLD475-M
-
Values are at Max Rated Standby Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Max Output Rated
- Trash Pump Flow L/min ..........kW
- TP_080 1300 ............6.3
- TP_100 1700 ..........10.4
- TP_080 1300 ............6.3
- TP_100 1700 ..........10.4
-
Values are at Rated Continuous Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Pump Model
- Fire Fighter Pump Model Engine Model
- HL22-GEARBOX VPHL210-M
- HL22 VPHL210-M
- HL30-GEARBOX VPHL210-M
- HL30 VPHL210-M
-
Values are at Max Rated Standby Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Max Output Rated
-
Fire Fighter Pump Model
Suction L/min ..........kW - HL22-GEARBOX 14-20 ..........1.5-2.2
- HL22 14-20 ..........1.5-2.2
- HL30-GEARBOX 27-33 ..........3.0-4.0
- HL30 30-40 ..........3.0-4.0
-
Values are at Rated Continuous Power 3600rpm 50hz 220v, 1000masl 1.0pF 27 Deg C
Mounting Configurations ( Standard )
Parallel Keyway Shaft
3/4" & 1" (Industrial)
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
