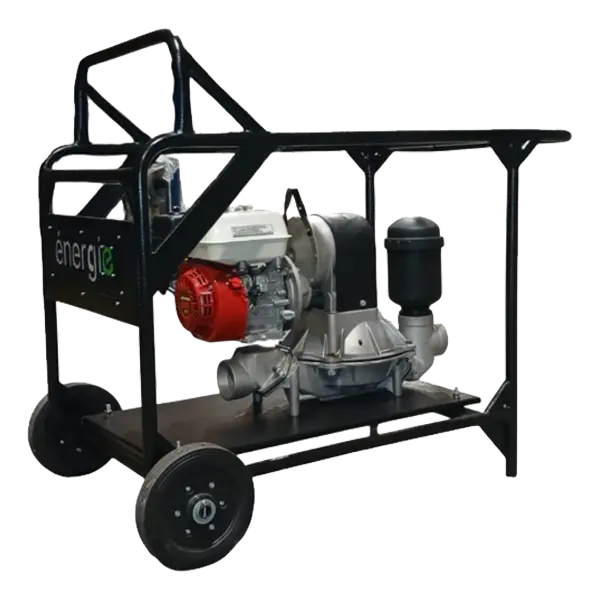

Diaphragm Pumps
Legendary Reliability Advanced Performance
Honda powered diaphragm pumps are engineered to handle challenging pumping applications where conventional centrifugal pumps may struggle. Powered by reliable Honda GX Series engines, these pumps are capable of transferring muddy water, sludge, slurry, sewage, and liquids containing high concentrations of solids.
Using a reciprocating diaphragm mechanism, these pumps can operate effectively even when pumping abrasive, viscous, or debris-laden fluids. Their rugged construction and dependable Honda power make them a preferred choice for construction, mining, agricultural, industrial, and emergency dewatering applications.
Product Range Overview
Refer to the table below
Single Cylinder Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 3.6kW
- Cylinder Single
- Speed 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Manual Recoil (Electric Start Optional)
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
-
Stage 5 compliant certificate available at additional cost
Pump Model
- Diaphragm Pump Model Engine Model
- DP080 GP160
- DP100 GP160
- Diaphragm Pump Model Engine Model
- DP080 3" 80mm / 3" 80mm
- DP100 4" 100mm / 4" 100mm
Max Output Rated
- Diaphragm Pump Flow L/min ..........kW
- DP080 333 ..........3.6
- DP100 500 ..........3.6
