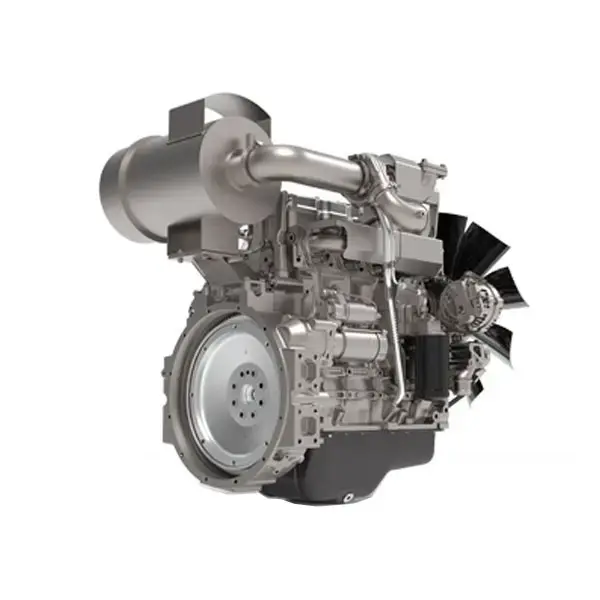

H Series Generator Engine
Giving You Better Power
The H-Series diesel engine is a purpose-engineered power unit developed by SDEC, incorporating advanced design principles to meet the specific performance and regulatory demands of the market. Leveraging proven technologies and robust engineering practices, the H-Series delivers an optimized balance of performance and durability. Key features include a compact architecture for enhanced space efficiency, a wide operational power band, high thermal and mechanical efficiency, and reduced noise and vibration characteristics, making it suitable for demanding industrial and commercial applications.
Product Range Overview
Refer to the table below
Characteristics
- Power 63kVA - 188kVA
- Engine Type Inline 4 Stroke
- Cylinder 4 or 6
- Speed 1500rpm / 1800rpm
- Cooling Water Cooled
- Starting System Electric 24vdc
- Injection Type Direct
- Frequency 50Hz
- Aspiration Turbo Charged
Product Range
Overview
Prime Rated kW & kVA
- Model kW \ kVA
- 4HT4.3-G22 62 \ 60
- 4HT4.3-G23 78 \ 80
- 4HTAA4.3-G21 95 \ 100
- 4HTAA4.3-G22 120 \ 125
- 4HTAA4.3-G23 120 \ 138
- 6HTAA6.5-G22 140 \ 150
- 6HTAA6.5-G23 168 \ 188
-
Values are Rated at 1500rpm 50hz 400v, 1000masl 1.0pF 40 Deg C
