Electric Power Generation: SDEC Power
Pure Energy Solutions for Sub-Saharan Africa

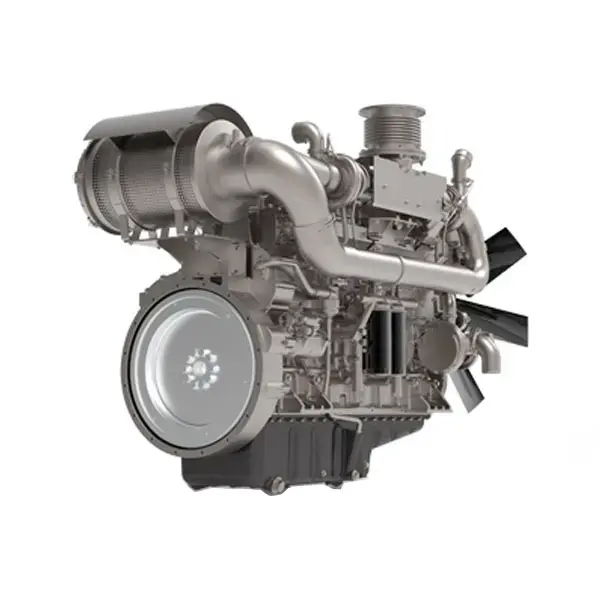

K Series Generator Engine
Giving You Better Power
The K-Series diesel engine is a purpose-engineered power unit developed by SDEC, incorporating advanced design principles to meet the specific performance and regulatory demands of the market. Leveraging proven technologies and robust engineering practices, the K-Series delivers an optimized balance of performance and durability. Key features include a compact architecture for enhanced space efficiency, a wide operational power band, high thermal and mechanical efficiency, and reduced noise and vibration characteristics, making it suitable for demanding industrial and commercial applications.
Product Range Overview
Refer to the table below
Characteristics
- Power 600kVA - 1000kVA
- Engine Type Inline 4 Stroke
- Cylinder 6
- Speed 1500rpm / 1800rpm
- Cooling Water Cooled
- Starting System Electric 24vdc
- Injection Type Direct
- Frequency 50Hz
- Aspiration Turbo Charged
Product Range
Overview
Prime Rated kW & kVA
- Model kW \ kVA
- 6KTAA25-G310 520 \ 562.5
- 6KTAA25-G39 572 \ 625
- 6KTAA25-G38 622 \ 700
- 6KTAA25-G32 685 \ 750
- 6KTAA25-G31 728 \ 825
- 6KTAA25-G320 820 \ 900
- 6KTAA25-G321 880 \ 1000
-
Values are Rated at 1500rpm 50hz 400v, 1000masl 1.0pF 40 Deg C
Mounting Configurations ( Standard )
SAE 0-18
DOWNLOAD:
Options
Drawing CAD-6KTAA25-G310 600kVA
Drawing PDF-6KTAA25-G310 600kVA
Drawing CAD-6KTAA25-G39 650kVA
Drawing PDF-6KTAA25-G39 650kVA
Drawing CAD-6KTAA25-G38 700kVA
Drawing PDF-6KTAA25-G38 700kVA
Drawing CAD-6KTAA25-G32 750kVA
Drawing PDF-6KTAA25-G32 750kVA
Drawing CAD-6KTAA25-G31 825kVA
Drawing PDF-6KTAA25-G31 825kVA
Drawing CAD-6KTAA25-G320 900kVA
Drawing PDF-6KTAA25-G320 900kVA
